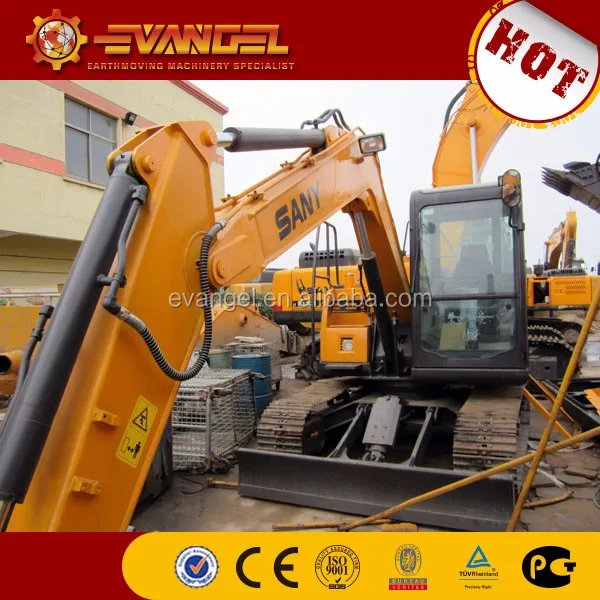

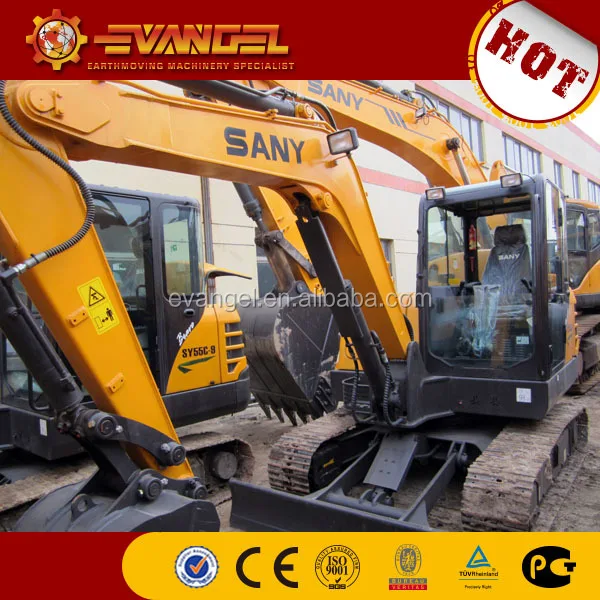

Sany 5 Ton SY55C Crawler Excavator Japanese used excavator

  • >=1 Units
    $35,800.00
Model Number:
SY55C
Machine Weight:
7280kg
Report Suspicious Activity
Overview
Quick Details
Bucket capacity:
0.28m3, 0.28 cbm
Operating Weight:
7280kg
Rated Speed:
4.4/2.4km/h
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts, Engineers available to service machinery overseas
Place of Origin:
Hunan, China
Brand Name:
sany
Condition:
New
Moving Type:
Crawler Excavator
Maximum Digging Height:
7060mm
Maximum Digging Depth:
4020mm
Max Digging Radius:
6240mm
Certification:
CE/ISO
Supply Ability
Supply Ability:
500000 Unit/Units per Year
Packaging & Delivery
Packaging Details
NUDE
Port
shanghai port or any port in china
Video Description

Sany 5 Ton SY55C Crawler Excavator Janpanese used excavator


Product Description



Advanced engine and hydraulic system

Super powerful engine combines with the new electrical positive flow hydro-system makes the excavator worked with high-efficiency and well adapted to different operating conditions.

Durable and reliable

With reinforced working device and high-strength swing plant, construction components' life span are improved 30%.

High Efficiency

Accurate and adjustable flow control makes the excavator worked faster and more efficiently.

Transport length5380mm
Transport width1960mm
Transport height2620mm
Upper body width1760mm
Std. track shoe width400mm
Track gauge1560mm
Min. ground clearance315mm
Tail swing radius980mm
Counterweight clearance660mm
Blade height340mm
Max. digging height5435mm
Max. dumping height3795mm
Max. digging depth3430mm
Max. vertical digging depth2470mm
Max. digging reach5880mm
Min. swing radius2520mm
Boom height at min.swing radius4145mm
Max. ground clearance of Bulldozer blade420mm
Engine model4TNV88C-PSY
Engine rated power29.1/2400kW/rpm
Engine max.torque133.3~144.9/(1560±100)(N·m/rpm)
Engine displacement2.19L
Boom cylinders bore X stroke90×640mm
Arm cylinders bore X stroke80×690mm
Bucket cylinders bore X stroke80×690mm
Overall weight5400kg
Bucket digging force31.5kN
Arm digging force21.2kN
Tractive force40.7kN
Travel speed (high/low)2.4/4.1km/h
Swing speed10rpm
Gradeability30°
Ground pressure32kPa
Fuel tank capacity78L
Hyd tank capacity52L
Engine oil capacity7.4L
Engine coolant capacity5.7L
Final drive capacity0.9L
Track shoes(per side)40
Carrier roller(per side)1
Boom length2700mm
