New price roller compactor 14 ton vibratory road roller XS143J

FOB Reference Price:Get Latest Price
US $25,000-30,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Month
Port:
Shanghai port
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Single Drum Roller
Static Linear Pressure:
322N/cm
Travel Speed:
0~10.5 km/h
Grade Ability:
30%
Place of Origin:
China (Mainland)
Model Number:
XS143J
Power(W):
92kw
Dimension(L*W*H):
6010x2340x3200 mm
Weight:
14000kg
Certification:
CE/ISO9001
After-sales Service Provided:
Engineers available to service machinery overseas
Packaging & Delivery
Packaging Details
Nude package
Delivery Time
Shipped in 15 days after payment

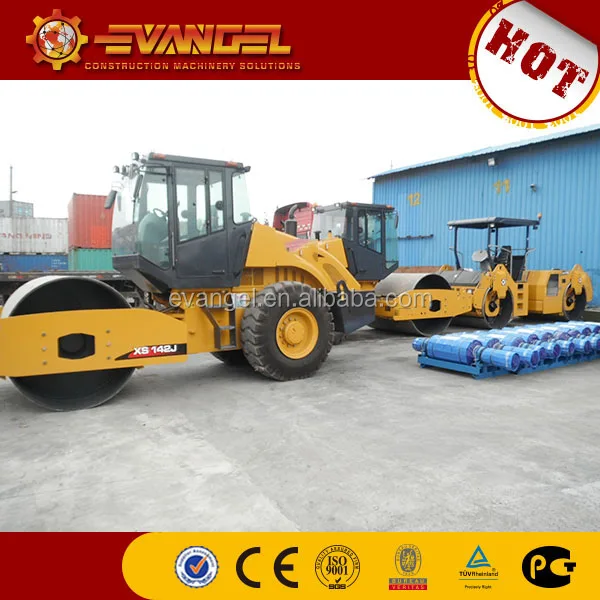

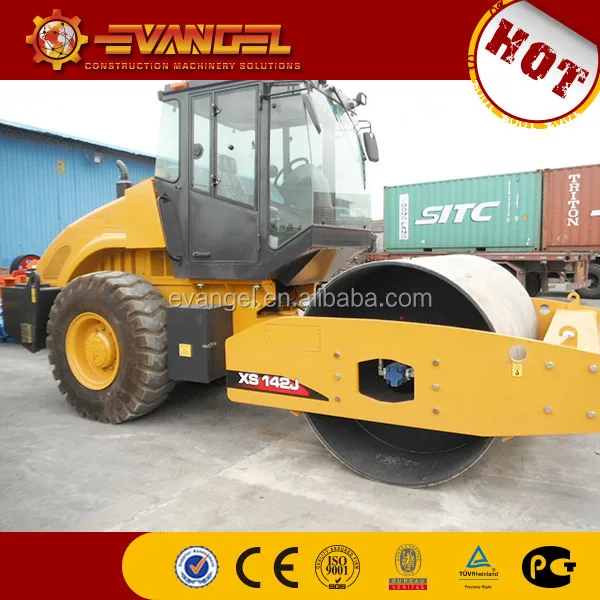

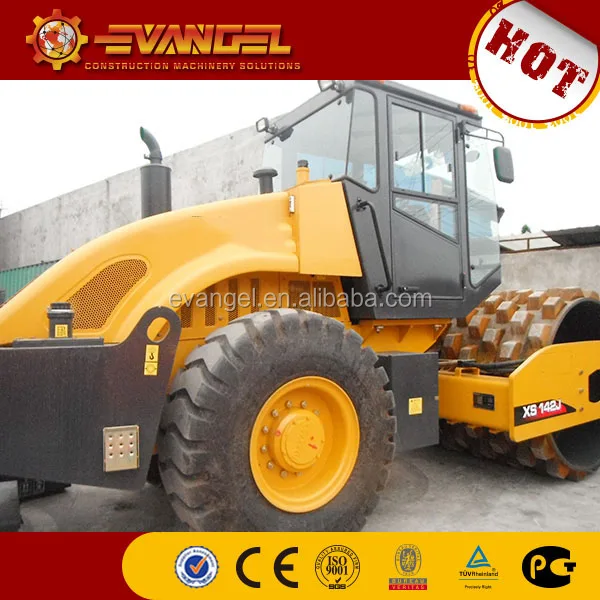

New price roller compactor 14 ton vibratory road roller XS143J





Product Description



XS143J/XS162J/XS182J vibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.







ModelUnitXS143J (updated from XS142J)
Operating weightkg14000
Weight on front drumkg7000
Static linear pressureN/cm322
Speed range
Speed Ikm/h2.7
Speed IIkm/h4.8
Speed IIIkm/h10.5
Theoretical gradeability%30
Min. external turning radiusmm6800
Steering angle°±30
Oscillating angle°±11
Vibration frequencyHz28
Nominal amplitude (high/low)mm1.9/0.95
Excitation force (high/low amplitude)kN274/137
Engine model SC5D125G2B1
TypeWater cooled, pressurizedWater cooled, pressurized
Max. powerkW92@2200r/min
Engine oil consumptiong/kW.h230
Hydraulic oil tank capacityL170
Fuel tank capacityL180
