SANY 75 ton Crawler Crane SCC750A for sale

FOB Reference Price:Get Latest Price
$185,000.00 - $200,000.00 / Units | 1 Unit/Units (Min. Order)
Max. Lifting Load:
75t
Model Number:
SCC750A
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Max. Lifting Height:
42+18m
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Feature:
Other
Condition:
New
Application:
construction
Rated Loading Capacity:
55t
Rated Lifting Moment:
71x4t`m
Place of Origin:
Hunan, China
Brand Name:
Sany
Certification:
CE/ISO9001
Dimension:
12300x3360x3300 mm
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Ro-Ro Shipment or Bulk Break
Port
shanghai, Qingdao,Ningbo,Tianjin
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 To be negotiated

Contact Person: Adela Huang



Mobile: +86-15800954269 (Whatsapp/Viber)



Email: adela @evangelchina.com



Product Description

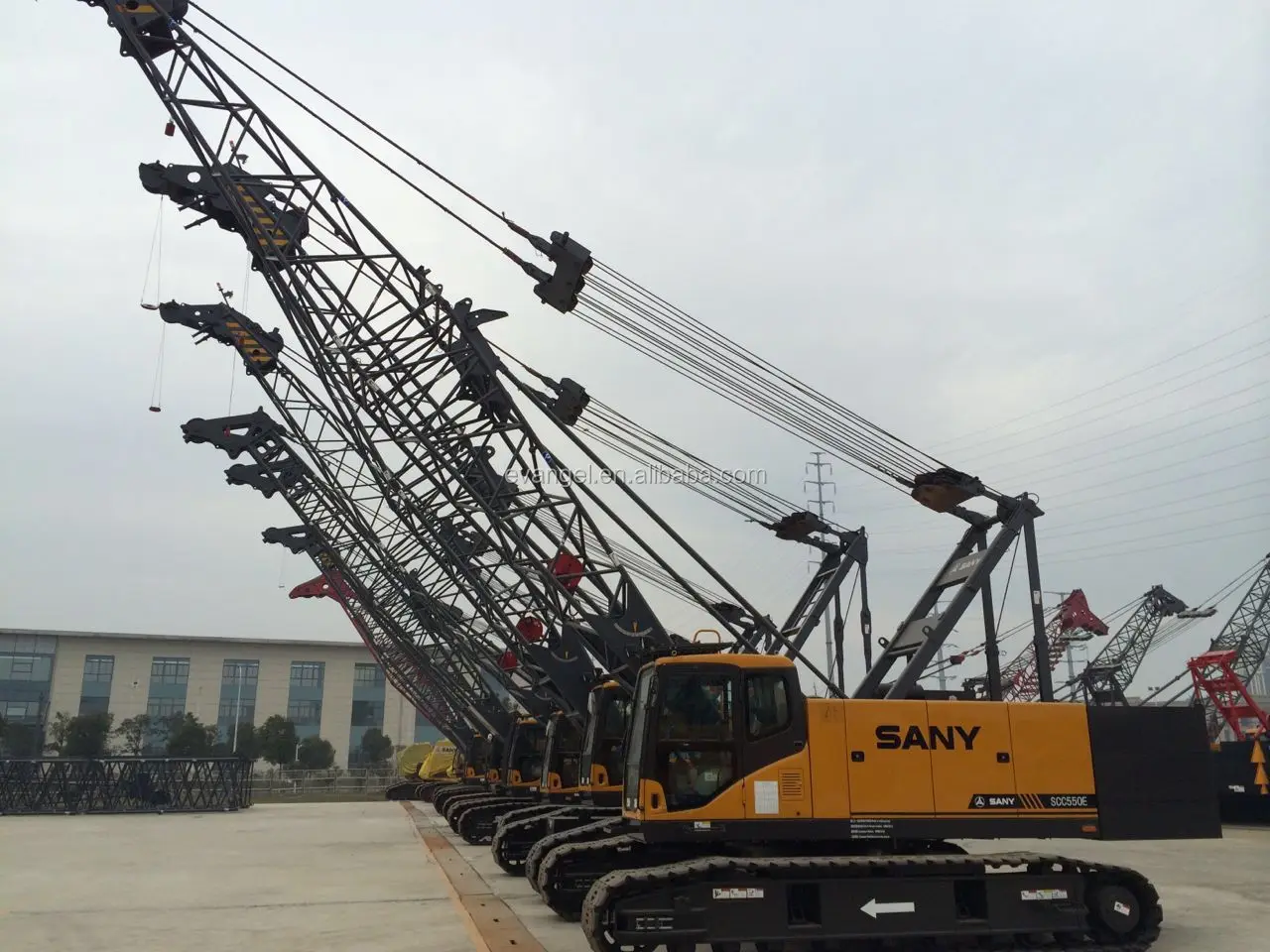

SANY 75 ton SCC750A Crawler Crane



Engine

*Model: 6HK1XKSC diesel engine.

*Type: 6-cylinder in linear, direct injection, with turbo charging, water cooling and inter-cooling. Meet Non-Road Emission Regulation of Europe (Tier III), and comply with Non-Road Emission Regulation of China (Tier III).

*Displacement: 7.79L.

*Rated power: 212kW/2000rpm.

*Maximum torque: 1,080N · m/1,500rpm.

*Starter: 24V-5.0kW.

*Battery: Two 12V high capacity batteries connected in series.

*Fuel tank: 400L.

Electrical Control System

*SYIC-2 integrated control system independently developed by SANY is adopted to ensure high system integration and accurate operation. The control system mainly includes power system, engine system, main control system, LMI system, auxiliary and safety monitoring system.

*Main electrical components are from internationally or industrially well-known brands, which can perform standby in
such bad environment as in severe low or high temperature, plateau, and sandstorms.

*The controller, monitor and the engine communicate through CAN Bus.

Hydraulic System

*Main pump: adopt open piston pump with large variable displacement, providing oil supply to the main executor;

*Gear pump: dual gear pump for swing, radiator and control circuit;

*Control: the main pump adopts the control type of electrically proportionate positive flow, and the winch motor is piston motor with variable displacement. The operating components are two hydraulically-controlled cross handles and one dual valve for travel pedals to control each executor proportionally.

*Max. pressure of system:

Main load, aux. load, boom/jib hoist winch and travel system:

32MPa

Swing system: 20MPa

Control system: 4.5MPa

*Hydraulic oil tank capacity: 460L.

Swing Mechanism

*I nternal-mesh slewing drive can slew the upperworks by 360°.

*Slewing lock: Slewing lock device is installed. When the operation is over or the machine is in transport, the upperworks can be locked tightly.

*Slewing bearing: Single row ball bearing.

*Slewing speed: 0~2.5 rpm.



Main and Aux. Load Hoist Mechanism

*Main and aux. hoist winches are driven separately by motor via gearbox. Operating winch handle can control the winch to rotate to two directions, which are lifting and lowering of hook. Excellent inching function is equipped on the machine.

*Drums with fold-line grooves can ensure the wire rope reeved in order in multilayers.



Boom Hoist

*Boom hoist winch is driven separately by motor via gearbox. Operating winch handle can control the winch to rotate to two directions, which are lifting and lowering of boom.

*Drums with fold-line grooves can ensure the wire rope reeved in order in multilayers.

Main Technical Data Table

Item
Parameters
Unit
Performance
Max rated lifting capacity
75
t
Max lifting moment
71×4
t.m
Max rated lifting capacity with fixed jib
7
t
Max lifting moment with fixed jib
18.4×22
t.m
Boom length
12-57
m
Longest (boom+fixed jib)
42+18
m
Boom luffing angle
30-80
°
Speeds

Rope speed of main/auxiliary winches
0~120(3rd layer)
m/min
Rope speed of boom/jib luffing winches
0-57 (4th layer)/ 100 (magnetic valve connected)
m/min
Single rope pull
7
t
Rope diameter
Φ20
m
Travelling speed
0-1.2
km/h
Slewing speed
0-3
rpm
Gradeability
30
%
Engine
Model
6HK1

Rated power
212/2000
kW/rpm
Rated torque
1080/1500
 Nm/rpm
Emissions
Tier Ⅲ


Transportation
Crane weight
63t (Basic boom + 75t hook)
t

Max transport weight of single part
37.3(with boom base, without central and rear counterweights)
t

Maxtransport dimensions
12300×3360×3300
mm

Average ground pressure
0.073
MPa
