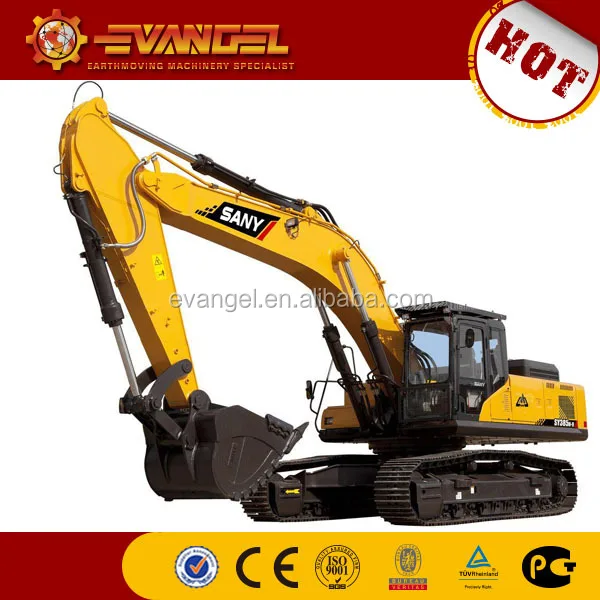

Sany Excavator 23.3 Ton SY335C with Hydraulic Jack Hammer

  • >=1 Units
    $69,000.00
Model Number:
SY335C
Machine Weight:
23300kg
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Bucket capacity:
0.9cbm
Operating Weight:
23300kg
Rated Speed:
5.5 km/h
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts, Engineers available to service machinery overseas
Place of Origin:
China
Brand Name:
sany
Condition:
New
Moving Type:
Crawler Excavator
Maximum Digging Height:
9985mm
Maximum Digging Depth:
6930mm
Max Digging Radius:
9985mm
Certification:
CE/ISO
Std. Bucket capacity:
1.2m3
Rated power:
125kw/2100rpm
Travel speed:
5.5km/h
Swing speed:
12rpm
Gradeability:
35 70%
Ground press:
47.6kPa
Bucket digging ability:
175kN
Arm Digging Force:
122kN
Vertical wall digging depth:
5845mm
Supply Ability
Supply Ability:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
NUDE
Port
shanghai port or any port in china
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description

Sany Excavator 23.3 Ton  SY335C with Hydraulic Jack Hammer

Skype:sunny.feng7789       Mobile/Whatsapp/Viber: +86-18019735352

Product Description

SY335 is mainly used for mining construction. Compared with other brands, it has lots of advantages such as High-efficiency / Long endurance / Reliability etc.

Using high quality wear-resistant plate for easily wearable positions, the life extended by 50%.Durable travel device, more suitable for heavy workload and tough work conditions.

1.Rated Power: 125kw/2100rpm
2.Engine Model:  Imported Japanese engine
3.Operating Weight:  33000kg

4.Model: Sany excavator SY335C-9

Overall dimension:

Model

SY335

A transport length

9910mm

B transport width

2980mm

C transport height

3180mm

D Upperstructure width

2710mm/8'10.7"

E Cab Height

2930mm/9'7.5"

F Std. Track shoe width

600mm/1'11.6"

G track gauge

2380mm

H Min. Ground clearance

440mm/1''5.3"

I Tail swing radius

2860mm

J Length to centers of rollers

3640mm

K track length

4445mm



Operation range

a Max. Digging height

9630mm

b Max. Dumping height

6725mm

c Max. Digging depth

6785mm

d Max. Vertical wall digging depth

5845mm

e Max. Digging reach

10150mm

f Min. Swing radius

3800mm

g Max. Height at min. Swing radius

7940mm

 Technical parameters:

Operating weight

33000kg

Std. Bucket capacity

1.2m3

Rated power

125kw/2100rpm

Travel speed

5.5km/h

Swing speed

12rpm

Gradeability

35 70%

Ground press

47.6kPa

Bucket digging ability

175kN

Arm Digging Force

122kN
