Factory supply XCMG wheel loader LW500 FN

FOB Reference Price:Get Latest Price
$40,000.00 - $60,000.00 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Dimension(Long * Breadth * High):
8150*2975*3467mm
Condition:
New
Brand Name:
LIUGONG
Place of Origin:
Guangxi, China
Type:
Front Loader
Moving Type:
Wheel Loader
Rated Load:
3000kgs
Certification:
ISO
Model Number:
LW 500 FN
Model:
Factory supply XCMG wheel loader LW500 FN
Bucket capacity:
3.0 M3
Engine model:
6CTA8.3 engine
Rated power:
160kw
Operating weight:
16800Kgkgs
Max. dump clearance:
3,100 mm
Dump reach:
1,035 mm
Bucket Breakout Force:
158kn
Wheel base:
3,250 mm
Track base:
2,150 mm
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
one year
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
nude packing, suitable for shipment
Port
Shanghai, Qingdao, Tianjin
Lead Time :
About 10 days
Video Description

Factory supply XCMG wheel loader LW500 FN

Product Description
Factory supply liugong 856 wheel loader

1.  Engine type:  6CTA8.3 engine

2.  Rated power: 160kw(215hp)

3.  Bucket capacity: 3.0 M3

4.  Operating weight: 16800kgs



Parameter : Factory supply XCMG wheel loader LW500 FN

ENGINE

LOADER ARM PERFORMANCE

Emission Regulation

Tier 2 / Stage II

Tipping Load - Straight

13,200 kg

Make

DCEC

Tipping Load - Full Turn

11,750 kg

Gross Power

164 (220 hp) kW@2,200 rpm

Bucket Breakout Force

158 kN

Net Power

147.6 (198 hp) kW@2,200 rpm

Maximum Dump Angle at Full Height

45°

Peak Torque

950 N ·m @ 1,300 rpm

Dump Clearance at Full Height Discharge

3,100 mm

Displacement

8.9 L

Dump Reach at Full Height Discharge

1,035 mm

Number of Cylinders

6

Maximum Hinge Pin Height

4,154 mm

Aspiration

turbo air-to-air aftercooled

Maximum Digging Depth, Bucket Level

 52 mm



TRANSMISSION

Bucket Rollback at Ground Level

45 °

Transmission Type

countershaft power shift

Bucket Rollback at Carry

50 °

Torque Converter

single-stage, three-element

Bucket Rollback at Maximum Height

61 °

Maximum Travel Speed, fwd

37 km/h

BUCKET PERFORMANCE

Maximum Travel Speed, rev

23 km/h

Reference  Bucket

3 m3

Number of Speeds, fwd

4

DIMENSIONS

Number of Speeds, rev

3

Length with Bucket Down

8,150 mm

AXLES

Width Over Tires

2,750 mm

Differential Front Type

limited slip

Wheelbase

3,250 mm

Differential Rear Type

limited slip

Wheel Tread

2,150 mm

Axle Oscillation

±14 °

Ground Clearance

431 mm

STEERING

Turn Angle, Either Side

38 °

Steering Configuration

articulated

Rear Angle of Departure

30 °

Steering Relief Pressure

16 MPa

Turning Radius, Outside of Tire

6,232 mm

BRAKES

Turning Radius, Center of Tire

5,932 mm

Service Brake Type

wet multi disc

Turning Radius, Bucket Carry

6,913 mm

Service Brake Actuation

hydraulic

TIRES

Parking Brake Type

auto/manual pneumatic control

Tire  Size

23.5 - 25

Parking Brake Actuation

spring apply; hydraulic release

OPERATING WEIGHTS

HYDRAULIC SYSTEM

Operating Weight

17,100 kg

Main Pump Type

gear

SERVICE CAPACITIES

Main Relief Pressure

20 MPa

Fuel Tank

330 L

Raise

6s

Engine Oil

30 L

Dump Time

1.5s

Cooling System

58 L

Float Down Time

3 s

Hydraulic Reservoir

210 L

Fastest Total Cycle Time

10.5s

Transmission and Torque Converter

45 L



Axles, each

34 L



Contact ways

Evangel Industrial (Shanghai) Co., Ltd.

Evangel International Machinery Ltd.

(CHINESE LEADING CONSTRCUTION MACHINERY AND SPARE PARTS EXPORTER)

Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China



Contact :Lisa Wang

Tel:+86-21-62188666-502   Fax: +86-21-62188666



Web:http://www.evangelchina.com

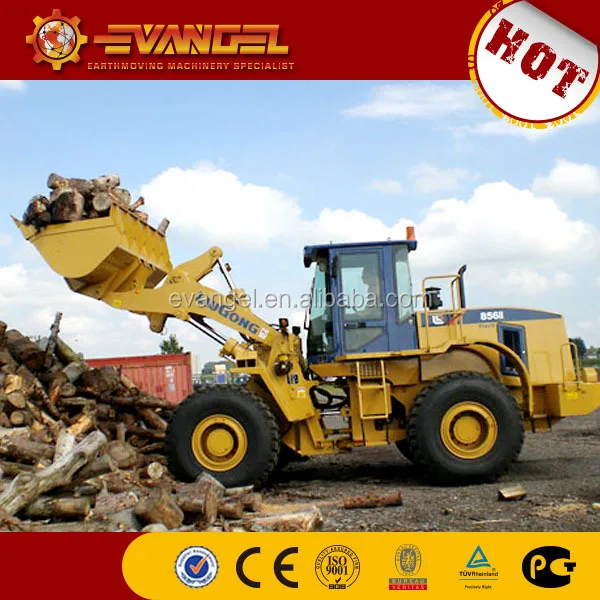

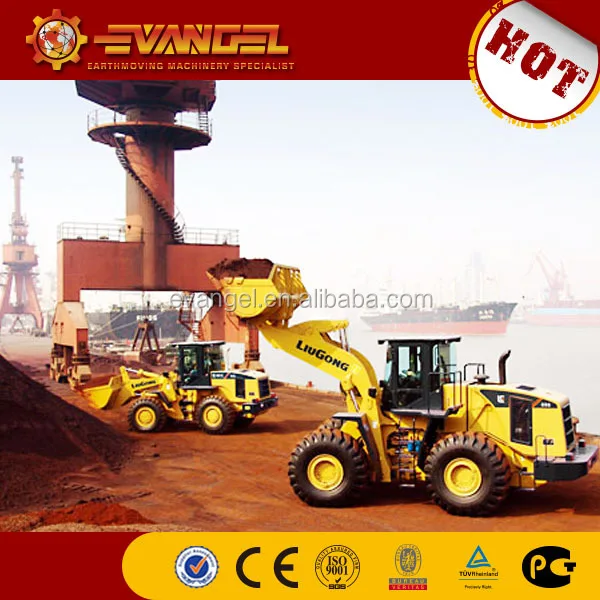

Photos: Factory supply XCMG wheel loader LW500 FN


Liugong Wheel Loader Type:Factory supply XCMG wheel loader LW500 FN
Model NumberBucket CapacityOperating WeightNet PowerBucket Breakout Force
0 - 150 Hp ( 0 - 110.32 KW )
CLG8161.02  yd³11,684 lb62.8  hp @ 2,400  rpm132 lb-ft
CLG816G1.05  yd³12,346 lb63.9  hp @ 2,400  rpm101 lb-ft
CLG816C1.05  yd³12,059 lb66.8  hp @ 2,400  rpm137 lb-ft
CLG835II2.2  yd³24,030 lb116  hp @ 2,200  rpm206 lb-ft
150 - 300 Hp ( 110.32 - 220.65 KW )
CLG842II3.0  yd³30,203 lb151  hp @ 2,200  rpm276 lb-ft
CLG856II(middle)3.9  yd³37,699 lb198  hp @ 2,200  rpm348 lb-ft
CLG856II (high)3.9  yd³37,699 lb198  hp @ 2,200  rpm348 lb-ft
CLG8624.6  yd³42,990 lb239  hp @ 2,200  rpm437 lb-ft
CLG862II4.6  yd³44,092 lb265  hp @  2200 rpm437 lb-ft
300 + Hp ( 220.65+ KW )
CLG888III5.9  yd³66,139 lb318  hp @ 2,100  rpm573 lb-ft






Feature:  Factory supply XCMG wheel loader LW500 FN

Built for Efficiency

Boom Kick-out & return to carry greatly  increases efficiency of repetitive loading tasks.

Powershift for smooth strong gear changes.

40 degree angle of articulation for working in tight spaces.

Optional  3 spool working valve.

Meets EU stage II/EPA tier 2 emission requirements.



Packaging & Shipping

 Shipping:  Factory supply XCMG wheel loader LW500 FN
