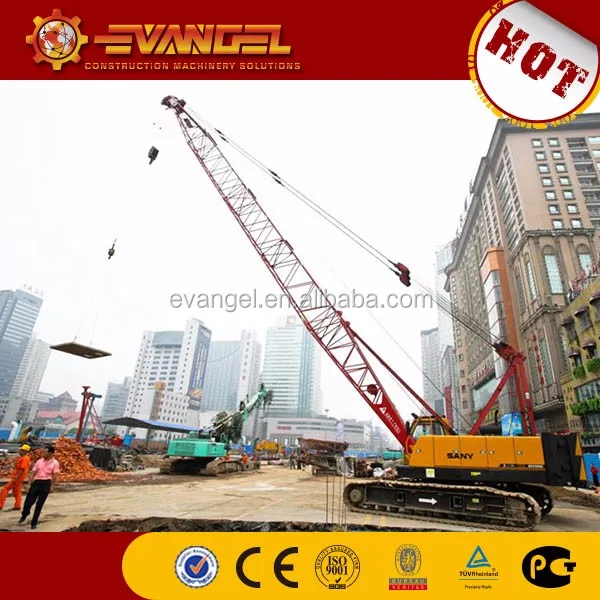

SANY 150 ton crane SCC1500D crawler crane load chart
Sany SCC1500D crawler crane's maximum lifting capacity is 150 tons, with multifunctional boom system, the crane may support a combination of up to 11 types of operating conditions. The 150 ton crawler tower suits for various business requirements.
Powerful Lifting Capacity
American and Dongfeng engines are both available, with rated power of 242kW@2100rpm, the former's maximum torque of 1424Nm@1500rpm and the later 1385Nm@1500rpm. the maximum lifting capacity of boom is 900t•m (112.5t× 8m) and the longest boom length is 81m.
Load-sensing system, limit load regulation, and electronic-over-hydraulic proportional micro-speed controls ensure smooth micro-movement and stable operation.
Traveling with 100% Load
The traveling direction can be automatically reversed after 180°rotation, powerful traveling traction and smoothness maximize the crawler crane's advantages to the most extent.
High Return & Low Cost
The transport weight of main machine is 43.5 tons, the transport width is only 3m, and it can be transported around the world without limitation.
It takes no more than 10min/person to adjust, 30min/person for daily maintenance and 2h/person to repair the machine. GPS remote monitoring system is optional for maintenance and management.
Self-assembly and Disassembly
The whole machine can be assembled and disassembled by itself, and it takes only 3 hours to assemble the basic machine; the patented synchronic control technology of one-key lifted mast.
It complies with the non-road Tier 3 emission standards of Europe and America, and meets the certification requirements of CE, North America, Australia, Russia and China Taiwan.
Fuel Heater (Optional)
Low temperature ignition even in extremely cold areas is guaranteed.
Safety and Reliability
Safe Control System
Switch between the operation and installation modes ensures the safety, and the crane's functions including real-time display of machine levelness, off-line stop, emergency electric control, lightning protection, and closed-circuit monitoring are highly convenient and reliable.
Reliable Function Guarantee
Sufficient safety margin in structural and mechanical design; the control system runs stably even in extreme cold / hot weather, high altitude and sandy regions.
Large Chassis Design
Track frame can be extended and the large chassis with a 6m track gauge ensures excellent stability within 360° rotation.
