SANY crawler crane 75t SCC750E hydraulic crane

FOB Reference Price:Get Latest Price
US $234,000-250,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Feature:
Truck Crane
Condition:
New
Application:
construction
Rated Loading Capacity:
75ton
Rated Lifting Moment:
3375kN.m
Max. Lifting Load:
75ton
Max. Lifting Height:
66m
Span:
46
Place of Origin:
Hunan, China (Mainland)
Brand Name:
SANY
Model Number:
SCC750E
Certification:
ISO9001
Crane weight:
63t (Basic boom + 75t hook)
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 year
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nude Package
Port
Shanghai/qingdao
Lead Time :
7-15 days after received prepayment

 SANY crawler crane 75t SCC750E hydraulic crane



Product Description

Features of SANY crawler crane 75t SCC750E hydraulic crane

Sany SCC750E crawler tower's maximum lifting capacity of boom is 75t; maximum lifting torque is 71tx4m. For the fixed jib, the maximum lifting torque is 6.7tx22m. The large chassis design of the 75 ton crawler tower ensures excellent machine performance and stability within 360°rotation.

Superior Performance

Strong Power Supply

Cummins inline six-cylinder, water-cooled turbo engine; with the rated power of 179kW@2200rpm, the crawler crane delivers powerful force, and complies with Tier 2 emission standard.

Excellent Operation

The crane's functions including load sensing, ultimate load regulation and electrohydraulic proportional dead slow control make each motion controlled, smooth and stable. Outmost layer line speed of main and auxiliary lifting winches is 120m/min andthat of luffing winch is 100m/min.

Safety and Reliability

Safe Control System

Switch between two operation modes: working and assembly mode. It features an electronic level gauge, machine-leaving stop action, emergency electrical control, and a complete set of safety and monitoring devices. No need for recalibration, the load moment limiter makes the equipment safer and saves your operating time.

Reliable Function Guarantee

Substantial safety margin in structural design, load sensitive control hydraulic system, hydraulic key components (pumps, valves, motors, and reducers) and advanced technology of renowned brands ensure the crane's stability and reliability. The control system runs well even in extreme weather and region. The sensor is protected against lightning strike, and the entire machine is closed wired to a waterproof / dust-proof protective grade of up to IP65.

High Return & Low Cost

Optimized Transportation

With telescopic crawler, the maximum transportation width of whole machine is 3.36m, allowing it to be transported freely, thus reduce the transportation costs for you.

Flexible Configurations

The crawler crane offers you diverse operating conditions with configurations of boom and fixed jib. The free fall winch is optional for main and auxiliary lifting winches.

Convenient Maintenance

It takes no more than 10min/person to adjust, 30min/person for daily maintenance and 2h/person to repair the machine. The complete set of fault self-diagnosis and inquiry system is configured, thus reducing the equipment handling time; GPS remote monitoring system is optional for easy maintenance and management.

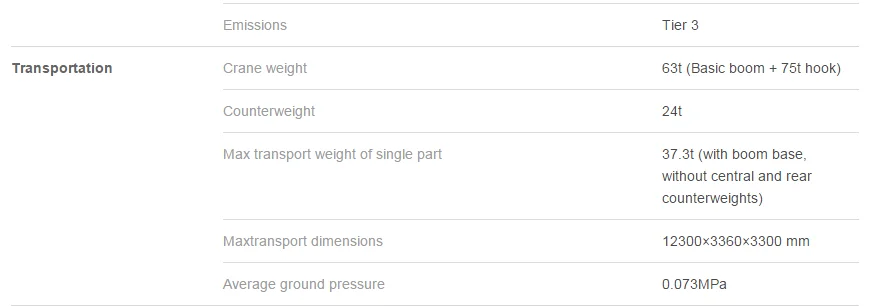

Paraments of SANY crawler crane 75t SCC750E hydraulic crane
