SANY Mobile Trailer Concrete Pump 52m

FOB Reference Price:Get Latest Price
US $200,000-250,000 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Power Type:
Diesel
Place of Origin:
China (Mainland)
Brand Name:
SANY
Weight:
3000kg
Dimension(L*W*H):
4580mm*1500mm*2100mm
Certification:
CE,ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 year
Supply Ability
Supply Ability:
500000 Unit/Units per Year
Packaging & Delivery
Packaging Details
nude package,shipped in suitabler container
Port
shanghai port or any port in China

SANY Mobile Trailer Concrete Pump 52m

Our Services

 Our products:

1) All kinds of China Construction Machinery.

(Types: wheel loader, excavator, cranes, paver, road roller, tractor, etc.)

2) ALL kinds of trucks.

( Types: dump truck, tractor truck, concrete mixer truck, cargo truck, trailer, etc.)

Sunny Feng/ Sales Manager


Skype:sunny.feng7789       Mobile/Whatsapp/Viber: +86-18019735352



Product Description



 Specification for SANY Mobile Trailer Concrete Pump 52m

Truck mounted concrete pump 52m

Unit

Parameters

HDT5410THB-52/5

Main technical parameters in working condition
Theoretical Productivity

m3/h

125

Pumping Capacity Index

MPa.* m3/h

586

Max. Concrete Pressure

Mpa

8.5

Hopper Capacity

L

700

Feeding Height

mm

1400

Model of Distributing Valve



S pipe valve

Max. operation Radius

m

47.8

Max. operation Height

m

51.8

Max. operation Depth

m

39.8

open height of aggregate carrying pipe

mm

9400

Distance between Front Landing Legs

mm

10295

Distance between Rear Landing Legs

mm

10650

Distance between Front and Rear Landing Legs

mm

10310

Diameter of Delivery Pipe

mm

125

Length of rear hose pipe

m

3

Rotary Range of Distributing Boom

365°
Number of Boom Sections

5
Rotary Angle of Each Boom Section

90/180/
180/180/270°
Close-control Distance

m

33
Remote-control Distance
m
200
Main technical parameters in
driving condition
Max. Traveling Speed
km/h
80
Min. Turning Radius
mm
12500
Brake Distance
m
10
Approach Angle

16°
Departure Angle

11°
Chassis Model

CYH51Y

Wheel Base between the First and the Second Axle
mm
1800
Wheel Base between the Second and the Third Axle
mm
5000
Wheel Base between the Third and the Fourth Axle
mm
 1350
Front Tread
mm
2022
Rear Tread
mm
1830
Max. Engine Power
kw
259(2100r/min)/275 (2200r/min)
Max Engine Torque
N.m
1460(1100r/min)/1500 (1100-1600r/min)
Overall Dimension
(length×width×height)
mm
13990*2500*4000
Full-load Total Weight
kg
42000

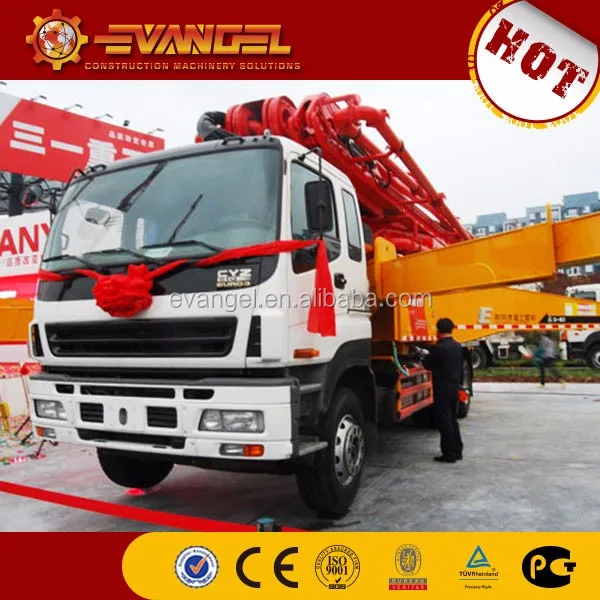

Pictures for SANY Mobile Trailer Concrete Pump 52m
