truck bed cranes zoomlion truck crane QY25V truck bed lift crane

FOB Reference Price:Get Latest Price
$105,000.00 - $115,000.00 / Units | 1 Unit/Units (Min. Order)
Max. Lifting Load:
25t
Model Number:
QY25V
Report Suspicious Activity
Overview
Quick Details
Max. Lifting Height:
33.3m
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts, Engineers available to service machinery overseas
Feature:
Truck Crane
Condition:
New
Rated Loading Capacity:
25t
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
zoomlion
Certification:
ISO9001:2008
Supply Ability
Supply Ability:
500000 Unit/Units per Year
Packaging & Delivery
Packaging Details
Seaworthy packing
Port
shanghai port or any port in China








truck bed cranes zoomlion truck crane QY25V truck bed lift crane





Product Description

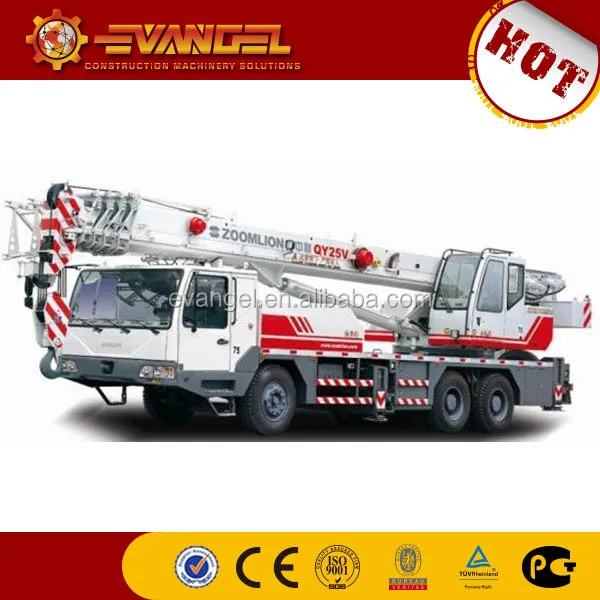

Zoomlion 25t Truck Crane QY25V
1.Chassis Model:ZLJ5325,engine power:199kw
2.Rated Load:25t

Item

Value

Remarks

Working performance

Max. rated lifting capacitykg

25000



Max. load moment of basic boom

kN.m

980



Max. load moment of max. boom lengthkN.m

573



Max. lifting height of basic boom m

11.5



Max. lifting height of boom m

33.8

Deformation of the boom is not taken into consideration.

Max. lifting height of jib m

41.6

Working speed

Max. hoist rope speed (main winch) m/min

120

At 4th layer

Max. hoist rope speed(auxiliary winch) m/min

100

At 2nd layer

Boom derricking times

40



Boom extending times

60



Slewing speed r/min

0~2.2



Traveling specifications

Max. traveling speed km/h

78



Max. gradeability %

37



Min. turning diameter m

≤22



Min. ground clearance mm

220



Limits for exhaust pollutants and smoke

Meet with related standards

GB3847-2005

GB17691-2005

(National stage III)

Oil consumption per hundred kilometers L

45



Weights

Deadweight in traveling condition

kg

30000



Complete vehicle kerb mass kg

29870



Front axle load kg

6800



Rear axle loadkg

23200



Dimensions

Overall dimensions (L×W×H) mm

12800×2500×3430



Longitudinal distance between outriggersm

5.36



Transversal distance between outriggers m

6.1



Boom length m

10.5~33.3



Boom angle°

-2~80



Jib length m

8



Offset °

0, 30





Chassis

Model

ZLJ5325

Code: ZLJ5325V3

Class

II



Engine

Model

WP10.270



Rated powerkW/r/min

199/2200



Max. output torqueN.m/r/min

1100/1300~1600



Manufacturer

Changsha Zoomlion Heavy Industry Science & Technology Development Co., Ltd.
