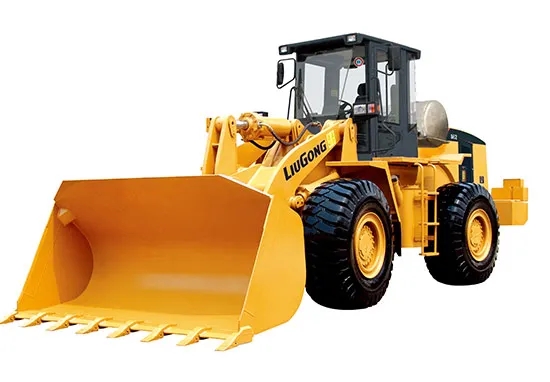

Liugong 3 ton Wheel Loader CLG835/liugong wheel loader spare parts

FOB Reference Price:Get Latest Price
US $23,000-31,000 / Units | 1 Unit/Units (Min. Order)
Model Number:
CLG835
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Brand Name:
LIUGONG
Place of Origin:
Guangxi, China (Mainland)
Type:
Front Loader
Moving Type:
Wheel Loader
Dimension(Long * Breadth * High):
7135mm*2350*3300mm
Rated Load:
3000kgs
Certification:
ISO
Warranty:
one year
Model:
Liugong 3 ton Wheel Loader/liugong wheel loader spare parts
Bucket capacity:
1.7 M3
Engine model:
Yuchai engine
Rated power:
92kw
Operating weight:
10200Kgkgs
Max. dump clearance:
3160mm
Dump reach:
1050mm
Digging depth:
212mm
Wheel base:
2750mm
Track base:
2050mm
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
nude packing, suitable for shipment
Port
Shanghai, Qingdao, Tianjin
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(day) 15 To be negotiated

Contact Person: Adela



Mobile:+86-158 0095 4269 (whatsapp/viber/wechat)



Email: adela at evangelchina.com



Product Description
Liugong 3 ton Wheel Loader/liugong wheel loader spare parts

1.  Engine type:  Yuchai engine

2.  Rated power: 92kw

3.  Bucket capacity: 1.7 M3

4.  Operating weight: 10200kgs



Parameter :  Liugong 3 ton Wheel Loader/liugong wheel loader spare parts

Model

CLG835


Rated load

3000Kg

Operating weight

10200Kg

Rated bucket capacity

1.7m3

Max. breakout force

90kN

Max. dump clearance

3160mm

Dump reach

1050mm

Dump angle at any position

≥45°

Digging depth(with bucket bottom horizontal)

212mm


liugong 835 wheel loader Min. turning radius


-----Outside of bucket

5600mm

-----Outside of rear wheel

5205mm

Oscillating angle of rear axle

±11°

Lifting time of bucket

≤5.8s

Lowering time of bucket

≤3.77s

Dumping time

≤1.43s


liugong 835 wheel loader Working Equipment


Model of oil pump

CBGj2100

System pressure

16Mpa

Model of multi-way directional valve

DF25.2C

Pilot valve

DJS2-UX/UU


liugong 835 wheel loader Axle And Tyre


Type of main reducer

Spiral bevel gear, single stage

Gear ratio of main reducer

5.286

Type of final reducer

Single stage planetary

Gear ratio of final reducer

4.75

total ratio

25.1

Max. tractive force

93.5kN

Tyre size

17.5-25


liugong 835 wheel loader Transmission System




Type

3-elements,single stage(Shantui)

Torque ratio

3.1

Cooling type

Pressure oil circulating

liugong 835 wheel loader Gear box

Type

Power shift(China advance)

Gear shifts(Forward/Reverse)

F4/R2

Traveling speed(Km/h)

Forward/Reverse

7.7/9.5

Forward/Reverse

13/18

Forward

25

Forward

40


liugong 835 wheel loader Braking System


Service brake

Air over oil activate 4 wheel brake with capliar disc brake

Air pressure

0.68Mpa

Parking brake

Draper -type soft axle control


liugong 835 wheel loader Steering System


Type

Middle articulated frame. Co-axis flow amp.steering

Model of steering pump

CBGj2050

Model of redirector

BZZ5-E400C

System pressure

14MPa

Articulated steering angle

38±1°(L/R)


liugong 835 wheel loader Dimensions


Length(with bucket on ground)

7135mm

Width(to outside of wheels)

2350mm

Height(To the top of the cab)

3300mm

Bucket width

2440mm

Wheel base

2750mm

Tread

2050mm

Ground clearance

395mm


liugong 835 wheel loader Service Capacities


Fuel tank

140L

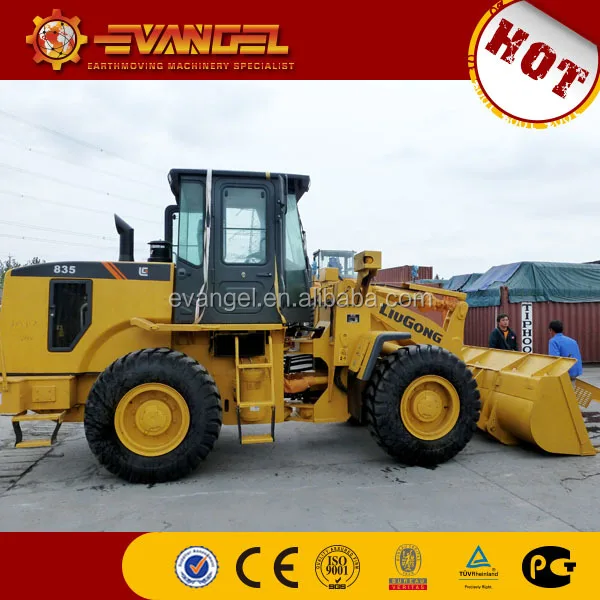

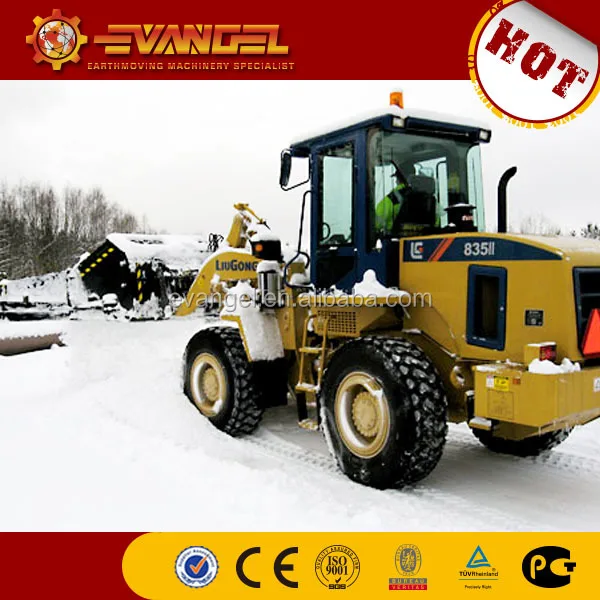

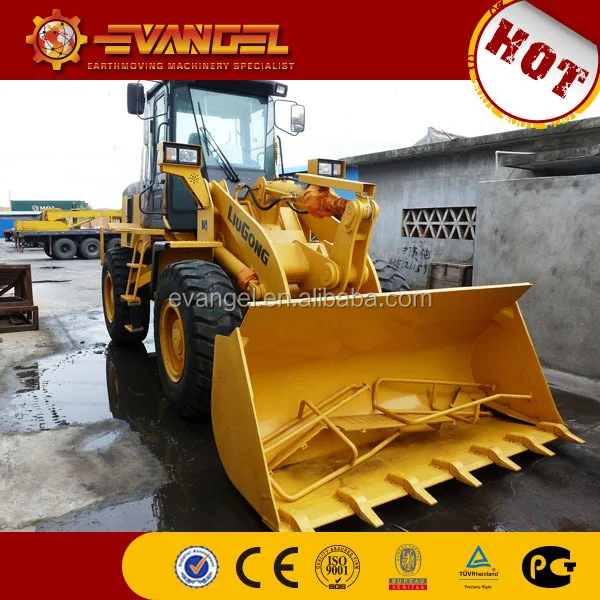

Photos: Liugong 3 ton Wheel Loader/liugong wheel loader spare parts


Liugong Wheel Loader Type:
Model NumberBucket CapacityOperating WeightNet PowerBucket Breakout Force
0 - 150 Hp ( 0 - 110.32 KW )
CLG8161.02  yd³11,684 lb62.8  hp @ 2,400  rpm132 lb-ft
CLG816G1.05  yd³12,346 lb63.9  hp @ 2,400  rpm101 lb-ft
CLG816C1.05  yd³12,059 lb66.8  hp @ 2,400  rpm137 lb-ft
CLG835II2.2  yd³24,030 lb116  hp @ 2,200  rpm206 lb-ft
150 - 300 Hp ( 110.32 - 220.65 KW )
CLG842II3.0  yd³30,203 lb151  hp @ 2,200  rpm276 lb-ft
CLG856II (middle)3.9  yd³37,699 lb198  hp @ 2,200  rpm348 lb-ft
CLG856II (high)3.9  yd³37,699 lb198  hp @ 2,200  rpm348 lb-ft
CLG8624.6  yd³42,990 lb239  hp @ 2,200  rpm437 lb-ft
CLG862II4.6  yd³44,092 lb265  hp @  2200 rpm437 lb-ft
300 + Hp ( 220.65+ KW )
CLG888III5.9  yd³66,139 lb318  hp @ 2,100  rpm573 lb-ft






Feature:  Liugong 3 ton Wheel Loader/liugong wheel loader spare parts

Built for Efficiency

Boom Kick-out & return to carry greatly  increases efficiency of repetitive loading tasks.

Powershift for smooth strong gear changes.

40 degree angle of articulation for working in tight spaces.

Optional  3 spool working valve.

Meets EU stage II/EPA tier 2 emission requirements.
